Gears & Drive Solutions

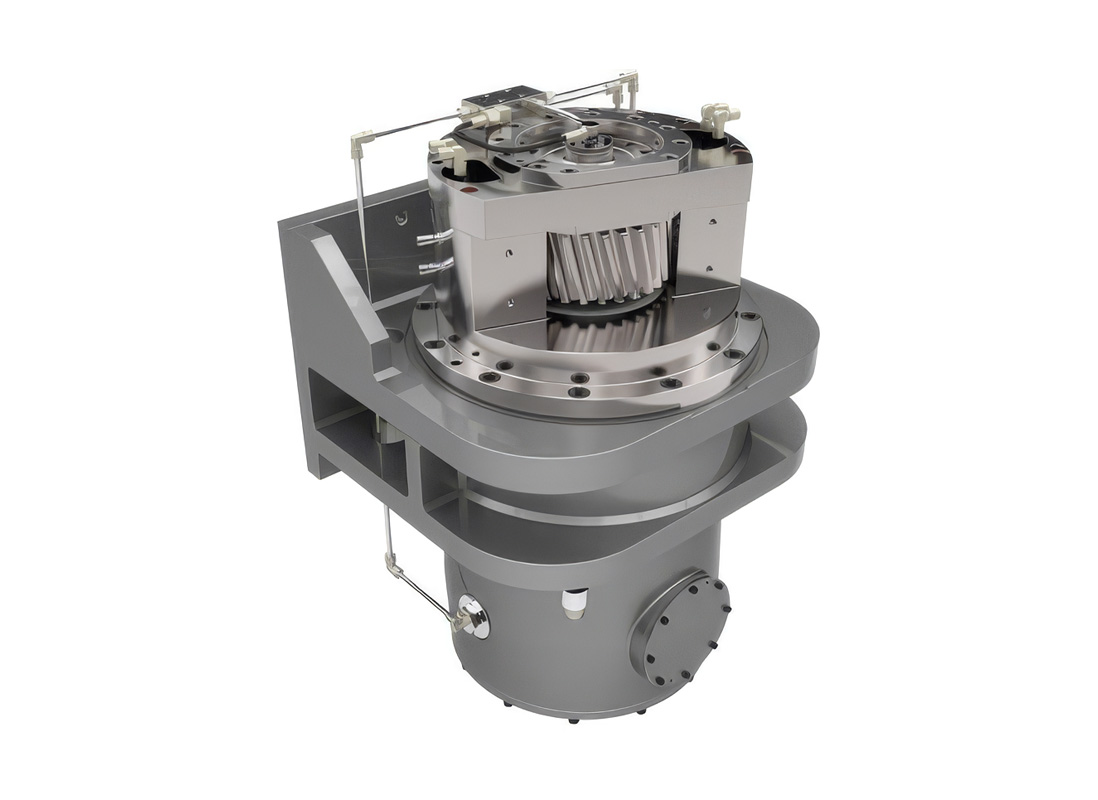

Rotary Table Drive

Compact, high-power-density drive solutions for precise positioning and continuous turning operations.

Download Brochure

Compact Drive Solutions for Precision and Performance

DESCH Denox® rotary table drives are engineered to deliver high power density, precise motion and reliable power transmission for demanding machine tool applications. Designed for both continuous turning operations and precise positioning, the Denox® DT series combines compact gearbox technology with flexible drive configurations to suit a wide range of rotary table requirements. With modular designs incorporating switchable planetary gearboxes, bevel gear stages, belt drives or direct motor configurations, Denox® drives can be tailored to specific machine layouts and performance requirements.

Rotary Table Drives For Machine Tools

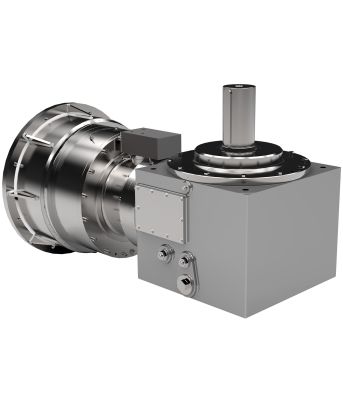

Rotary table drive Denox® DT – ECO

The Denox® DT-ECO series combines a switchable planetary gearbox with a bevel gear stage in a compact drive concept designed for horizontal machine installation. The preconfigured platform can be individually adapted to customer requirements, with direct motor connection and flexible output configurations for different rotary table designs.

  • Switchable planetary gearbox combined with bevel gearbox
  • Individually configurable for customer-specific installation requirements
  • Horizontal installation position with motor attachment and vertically upward output
  • Designed for recirculating oil lubrication with flexible media supply interfaces
Rated Torque Rangeup to 9,000 Nm (S1-100%)
Max. input speedup to 6,000 rpm
Max. output speedup to 3,000 rpm
Denox_Rotary_Table Drive_Type_DT ECO_400x400

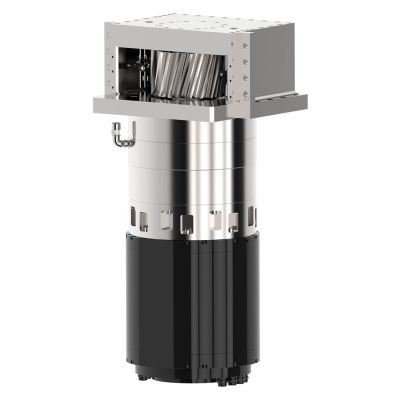

Rotary table drive Denox® DT – Type DM

The Denox® DT Type DM combines a switchable planetary gearbox with a compact torque motor in an inline drive configuration. The direct motor arrangement eliminates the need for an additional clutch interface, simplifying installation while supporting efficient power transmission and reliable running performance. The gearbox can operate as a double drive for positioning as well as continuous turning operations.

  • Hydraulically switchable gear stage(s)
  • Optional output-side gear wheel and counter bearing
  • Output gear wheel can be customised to the crown wheel
Rated Torqueup to 12,000 Nm, multi-stage up to 28,000 Nm (S1-100%)
Max. input speedup to 2,500 rpm
Max. output speedup to 2,500 rpm
Denox_Rotary_Table_DriveDT-Type-DM_400x400

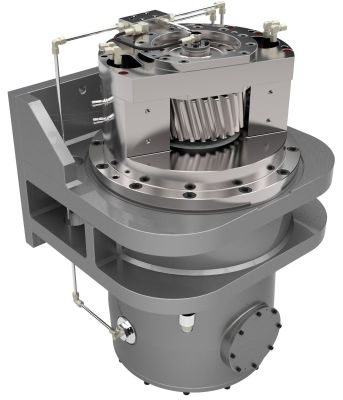

Rotary table drive Denox® DT – Type K

The Denox® DT Type K is a high-power-density rotary table drive combining a switchable planetary gearbox with a bevel gear stage. The bevel gear stage enables horizontal motor mounting while the shiftable gearbox allows the drive to be used for both precise positioning and continuous turning operations.

  • Horizontal installation position and motor mounting
  • Vertically upward output configuration
  • Designed for recirculating oil lubrication
Peak Torqueup to 13,600 Nm (S6-40%)
Max. input speedup to 5,000 rpm
Max. output speedup to 2,200 rpm
Denox_Rotary_Table DriveDT_Type_K_400x400

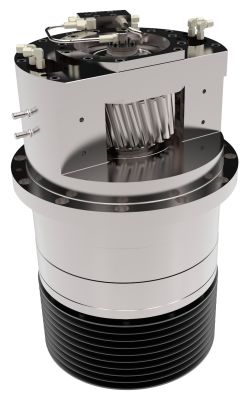

Rotary table drive Denox® DT – Type R

The Denox® DT Type R is a customized rotary table drive combining a belt-driven input with a switchable planetary gearbox. Its flexible configuration allows the drive to operate as a single or double drive for both positioning and continuous turning operations, making it suitable for demanding rotary table applications.

  • Belt pulley drive combined with switchable planetary gearbox
  • Individually configurable for customer-specific installation requirements
  • Vertical installation position with vertically upward output
Rated Torqueup to 12,000 Nm (S1-100%)
Max. input speedup to 2,200 rpm
Max. output speedup to 2,200 rpm
Denox_Rotary_Table Drive_Type_R_400x400

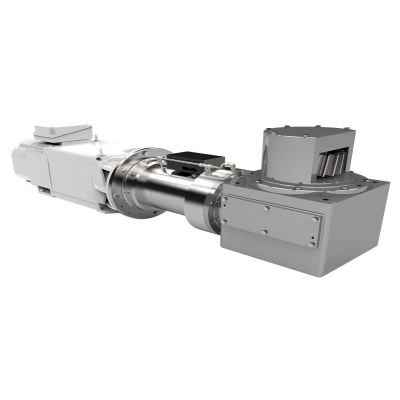

Rotary table drive Denox® HL – ECO

The Denox® HL is a configurable, shiftable planetary gearbox designed for horizontal lathe applications. Available in single- or multi-stage configurations, it combines flexible output arrangements with direct motor integration to provide efficient power transmission and reliable performance in demanding machine tool applications.

  • Shiftable planetary gearbox
  • Single- or multi-stage gearbox configurations
  • Individually configurable for customer-specific requirements
Powerup to 300 kW
Max. input speedup to 4,500 rpm
Max. output speedup to 2,000 rpm
Denox_Rotary_Table_Drive-HL-Eco-Desch_400x400

Choosing The Right Drive For The Job

There’s a lot to consider when choosing the right DESCH product for your specific application.

Machine Configuration

The installation arrangement and available space are key considerations when selecting a rotary table drive.

Key factors to assess include:

  • Horizontal or vertical installation
  • Available installation space
  • Motor mounting arrangement
  • Required output configuration

Operating Requirements

The drive must deliver the required torque and speed across both continuous machining and positioning operations.

When evaluating operations, consider:

  • Required rated and peak torque
  • Input and output speed
  • Continuous turning requirements

Drive Configuration

DESCH offers different drive concepts to accommodate specific machine architectures and performance requirements.

Some of our options include:

  • Switchable planetary gearbox
  • Single- or multi-stage configurations
  • Electrical or hydraulic gear shifting

Maintain For Longevity

While DESCH products are engineered for long-term performance, appropriate maintenance helps protect reliability, extend service life, and prevent avoidable downtime.

  • Install and commission the drive according to DESCH instructions.
  • Follow the specified lubrication and oil requirements.
  • Regularly inspect the gearbox, connections and output components for abnormal wear or operating conditions.
  • Monitor operating temperature, noise and vibration to identify potential issues early.
