Drive Components

Gear Couplings

Flexible shaft connections for high-capacity torque transmission, misalignment compensation, and demanding industrial drive applications.

Download Brochure

Flexible, Durable, and Reliable Gear Couplings

DESCH gear couplings are flexible shaft connections designed for positive torque transmission while compensating for radial, axial, and angular shaft displacement. Their crowned gearing allows the coupling to accommodate shaft misalignment while maintaining effective torque transfer between connected drive components.

Manufactured from high-quality tempered steel and designed with optimized grease lubrication and sealing, DESCH Gear Coupling GC solutions are built for high operational safety and long service life. Backed by proven DESCH engineering, they are ideally suited for the following industries and applications:

General Mechanical Engineering

Aluminum & Steel Processing

Rolling Mills

Paper Industry

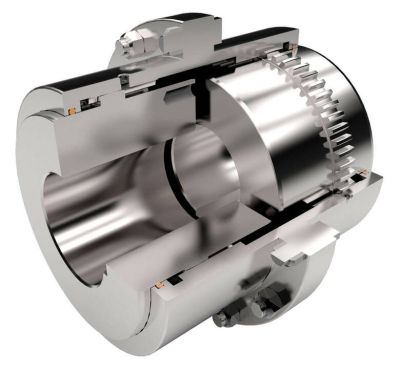

GC – Standard Coupling

The DESCH GC standard gear coupling is a flexible, all-steel shaft connection designed for positive torque transmission and compensation of radial, axial, and angular shaft displacement. The crowned gearing and optimized grease lubrication support low-wear operation, long service life, and high operational safety. The standard GC range is available in small and large sizes for a broad range of industrial drive applications.

  • Horizontal installation as standard
  • Available in standard sizes from GC 50 to GC 600
  • Application-specific and special configurations available on request
Torque1,920 – 8,000,000 Nm
Small SizesGC 50 – GC 220
Large Sizes/ Heavy LoadGC 240 – GC 600
Gear_Coupling_GC_Standard_400x400

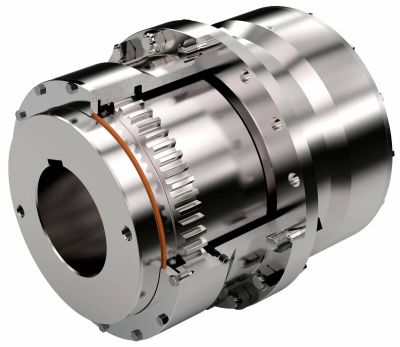

GC – Standard Heavy Load Coupling

The DESCH GC heavy-load configuration is designed for applications requiring higher-capacity torque transmission within the GC coupling range. The GC 240–GC 600 sizes provide a robust solution for demanding industrial drives where high torque, shaft misalignment compensation, and long-term operational performance are required.

  • Designed for heavy-load drive applications
  • High-capacity positive torque transmission
  • Flexible compensation of radial, axial, and angular shaft displacement
Coupling SizeGC 240 – GC 600
TorquePart of GC family range up to: 8,000,000 Nm
Desch_Gear_Coupling_GC_heavy_load400x400

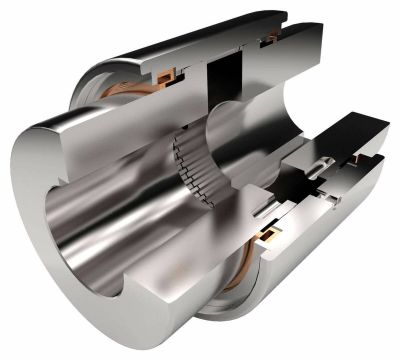

GCY – With One-Piece Sleeve

The DESCH GCY is a GC gear coupling configuration featuring a one-piece sleeve. It provides the same fundamental flexible shaft connection principle as the GC range while adapting the coupling construction to applications where a one-piece sleeve arrangement is preferred.

  • One-piece sleeve design
  • Positive torque transmission
  • High-strength steel construction
Torque Dependent on coupling size and configuration
Configuration Add One-piece sleeve
Gear_Coupling_GCY-one_piece_sleeve400x400

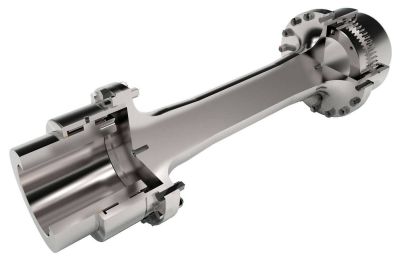

GCLE – With Intermediate Shaft

The DESCH GCLE configuration incorporates an intermediate shaft into the gear coupling arrangement. This configuration is intended for drive systems where additional shaft length or spacing between connected machine components is required while retaining the flexible coupling characteristics of the GC range.

  • Compensation of shaft misalignment
  • Flexible connection between separated drive components
  • High-strength steel construction
Torque Dependent on coupling size and configuration
ConfigurationIntermediate shaft
Desch_Gear_Coupling_GCLE_with_intermediate_shaft400x400

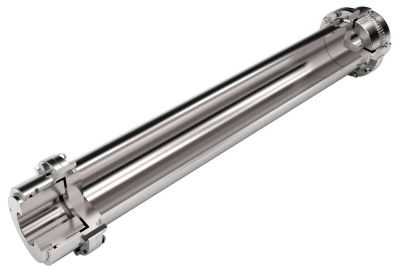

GCX – With Spacer Sleeve

The DESCH GCX is a spacer-sleeve version of the GC gear coupling. Its configuration provides additional spacing between the connected shafts, making it suitable for drive arrangements where installation geometry or component accessibility requires a greater distance between the connected machine elements.

  • Flexible connection between drive components
  • High-strength steel construction
  • Suitable for demanding industrial applications
TorqueDependent on coupling size and configuration
ConfigurationSpacer sleeve
GCX__with_space_sleeve_400x400

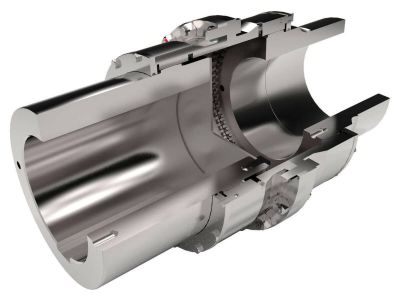

GCL – With Extended Hubs

The DESCH GCL features extended hubs for applications requiring increased hub length within the coupling arrangement. It retains the core GC gear coupling principle of positive torque transmission and flexible compensation of shaft displacement while adapting the connection geometry to specific installation requirements.

  • Extended hub configuration
  • Positive torque transmission
  • Compensation of shaft misalignment
TorqueDependent on coupling size and configuration
ConfigurationExtended hubs
GCL_with_extended_hubs_400x400

GCT – With Shear Pins

The DESCH GCT incorporates shear pins into the gear coupling arrangement for applications where a shear-pin configuration is required. It combines the flexible shaft connection characteristics of the GC range with a design intended for specialized drive protection requirements.

  • Robust steel construction
  • Designed for specialized industrial drive applications
  • Application-specific configuration available
TorqueDependent on coupling size and configuration
ConfigurationShear pins
GCT_with_shear_pins400x400

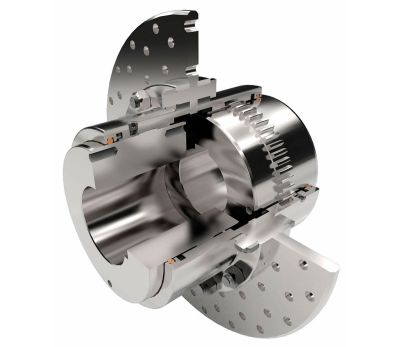

GCB – With Brake Disc

The DESCH GCB combines the GC gear coupling design with an integrated brake-disc arrangement. It is intended for drive systems where torque transmission and braking functions need to be incorporated into the same coupling assembly.

  • Positive torque transmission
  • Compensation of radial, axial, and angular shaft displacement
  • High-strength steel construction
TorqueDependent on coupling size and configuration
ConfigurationBrake disc
GCB_with_brake_disc_400x400

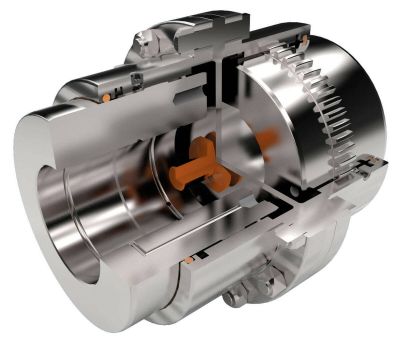

GCV – For Vertical Drives

The DESCH GCV is designed for vertical drive installations. It retains the flexible shaft connection and positive torque transmission characteristics of the GC range while accommodating applications where the coupling must operate in a vertical arrangement. DESCH identifies vertical installation as a special configuration within the GC range.

  • High-strength steel construction
  • Grease-lubricated crowned gearing
  • Adapted for vertical installation requirements
TorqueDependent on coupling size and configuration
ConfigurationVertical drive
GCV_for_vertical_drives_400x400

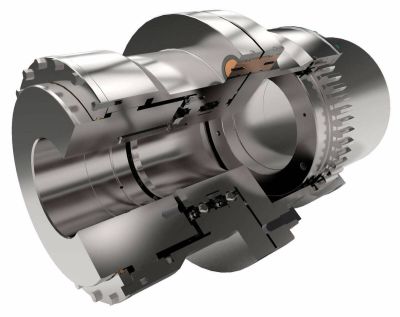

GCTAM – Special Type for Winder

The DESCH GCTAM is a special gear coupling configuration developed for winder applications. It provides the flexible shaft connection and positive torque transmission characteristics of the GC family while being configured specifically for the installation requirements of winding equipment.

  • Special configuration for winder applications
  • Positive torque transmission
  • Compensation of shaft displacement
TorqueDependent on coupling size and configuration
ApplicationWinder drives
GCTAM_special_type_for_winder_400x400

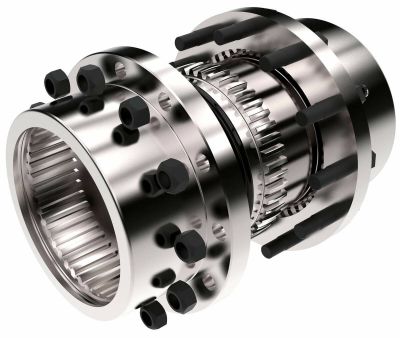

GC-ECO – Economic Standard Coupling

The DESCH GC-ECO is an economical, torsionally stiff shaft connection designed for positive torque transmission while allowing flexible compensation of shaft misalignment. Manufactured from high-strength steel with grease-lubricated crowned gearing and O-ring sealing, it provides a compact and durable coupling solution for mechanical engineering applications.

  • Economical standard coupling design
  • Torsionally stiff shaft connection
  • High-strength steel construction
Coupling Size52 – 280
Torque1,900 – 200,000 Nm
Shaft Diameter20 – 280 mm
Max. Speed1,730 – 6,000 rpm
GC_ECO_Economic_standard_coupling_400x400

Choosing The Right Coupling For The Job

Selecting the right gear coupling depends on the drive configuration, transmitted torque, operating speed, shaft arrangement, and the type of misalignment that needs to be accommodated. DESCH offers multiple GC configurations so the coupling can be matched to the mechanical and installation requirements of the application.

Conditions

The operating environment and mechanical conditions determine which coupling configuration and size are appropriate.

Key factors to assess include:

  • Input power and operating speed
  • Continuous, variable, or shock loading
  • Radial, axial, and angular shaft displacement

Application

The key is not where they’re used, but how they perform in your application.

When evaluating use cases, consider:

  • Required nominal and peak torque
  • Shaft diameter and connection geometry
  • Need for braking, spacing, or intermediate-shaft arrangements

Configuration

The GC family includes multiple configurations designed around different installation and operating requirements.

Available configurations include:

  • Standard and heavy-load couplings
  • One-piece sleeve and extended-hub versions
  • Intermediate-shaft and spacer-sleeve configurations

Maintain For Longevity

While DESCH products are engineered for long-term performance, appropriate maintenance helps protect reliability, extend service life, and prevent avoidable downtime.

  • Select the coupling according to power, speed, torque, shaft dimensions, and application load.
  • Install and align the coupling according to the applicable DESCH documentation.
  • Maintain the specified grease lubrication and sealing system.
  • Inspect gearing, seals, and coupling components during scheduled maintenance.
  • Check for abnormal wear, operating conditions, and changes in load or alignment.
