Drive Components

Flexible Couplings

Precision shaft connection with misalignment compensation, vibration reduction and high torque transmission.

Download Brochure

Precision And Flexibility For Demanding Drive Systems

DESCH flexible couplings are designed to transmit torque while accommodating shaft misalignment, vibration and shock within industrial drive systems. With multiple coupling designs, materials and performance ranges, DESCH provides solutions for applications ranging from compact, high-speed drives to heavy-duty systems requiring high-torque transmission. Depending on the coupling design, options include aluminum, steel and grey cast iron construction, as well as flexible tyre couplings for applications requiring substantial misalignment compensation.

General Mechanical Engineering

Conveyor & Material Handling Systems

Manufacturing & Processing Equipment

Energy, Rubber & Plastics and Heavy Industrial Applications

Flexible Coupling

DESCH flexible couplings provide a flexible connection between shafts while compensating for shaft misalignment and helping to reduce vibration and shock within the drive system. The design supports precise torque transmission while accommodating the operating movements that occur in industrial machinery.

  • Compensates for shaft misalignment
  • Helps reduce vibration and shock
  • Designed for high torque transmission
Max. Speed19,000 – 3,750 rpm
Max. Torque20 – 4,800 Nm
Flexible_Coupling_400x400

Flexible coupling made of aluminum, from size 65 made of steel

This DESCH flexible coupling combines lightweight aluminum construction with steel construction from size 65, providing a flexible shaft connection for applications where low mass and high-speed operation are important. The coupling accommodates shaft misalignment while transmitting torque across the drive system.

  • Lightweight aluminum construction
  • Steel construction from size 65
  • High-speed capability
Max. Speed19,000 – 4,000 rpm
Max. Torque34 – 1,900 Nm

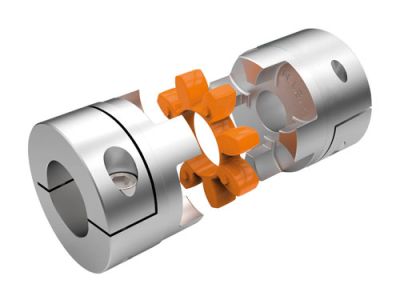

DESCH-Habix_HPK_400x400 described as Flexible coupling made of aluminum, from size 65 made of steel

Flexible Coupling

This DESCH flexible coupling is designed for applications requiring increased torque transmission while maintaining the flexibility needed to compensate for shaft misalignment and operating disturbances. Its performance range makes it suitable for a broad range of industrial machinery and drive systems.

  • High torque transmission capability
  • Compensates for shaft misalignment
  • Helps reduce vibration and shock
Max. Speed8,100 – 2,200 rpm
Max. Torque72 – 7,200 Nm
DESCH-HRC_Flexible_Coupling400x400

Flexible Coupling

Designed for applications requiring high rotational speeds combined with controlled torque transmission, this DESCH flexible coupling provides a flexible connection between rotating shafts while compensating for misalignment. Its broad speed range allows it to be applied across different industrial drive requirements.

  • Designed for high-speed operation
  • Broad operating speed range
  • Compensates for shaft misalignment
Max. Speed18 – 10,000 rpm
Max. Torque9,700 – 1,350 Nm
DESCH_Pex_Flexible_Coupling_400x400

Flexible coupling made of grey cast iron, optionally made of steel

DESCH flexible couplings in grey cast iron, with steel available as an option, are designed for applications requiring high torque transmission and robust mechanical construction. The range extends into heavy-duty applications where substantial torque loads must be transferred while allowing flexibility within the drive system.

  • Grey cast iron construction
  • Steel construction available as an option
  • Designed for high torque applications
Max. Speed GG5,000 – 1,350 rpm
Max. Torque GG200 – 25,000 Nm
DESCH-Orpex_Flexible_Coupling_400x400-made of grey cast iron and can be made of steel

Flexible Tyre Coupling

DESCH flexible tyre couplings use a flexible tyre element to accommodate shaft misalignment while transmitting torque between connected drive components. The design is suited to applications where flexibility, vibration absorption and high torque capacity are important considerations.

  • Accommodates shaft misalignment
  • Helps absorb vibration and shock
  • High torque transmission capability
Max. Speed4,500 – 1,000 rmp
Max. Torque64 – 42,740 Nm
Nominal Torque24 Nm – 14,675 Nm
DESCH_Flex_Coupling_400x400

Mini Coupling

DESCH mini couplings provide a compact flexible shaft connection for applications where installation space and low torque requirements are important considerations. Their small size and high-speed capability make them suitable for compact industrial drive systems.

  • Compact design
  • Suitable for space-restricted installations
  • High-speed capability
Max. Speed10,000 – 3,500 rpm
Max. Torque3 – 220 Nm

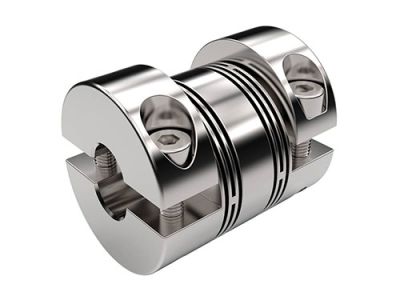

DESCH-Mini_Coupling_400x400

Choosing The Right Coupling For The Job

There’s a lot to consider when choosing the right DESCH product for your specific application.

Load & Speed

The coupling must be matched to the torque and rotational speed of the connected equipment.

Key factors to assess include:

  • Peak and starting loads
  • Required safety factor
  • Drive duty cycle

Alignment & Vibration

Shaft misalignment, vibration and shock can place additional loads on connected drive components.

When evaluating, consider:

  • Radial or parallel misalignment
  • Axial movement
  • Vibration levels

Application & Configuration

Material, available space, shaft dimensions and required torque all influence the final configuration.

Our options include:

  • Flexible tyre designs
  • Compact mini couplings
  • Application-specific configurations

Maintain For Longevity

While DESCH products are engineered for long-term performance, appropriate maintenance helps protect reliability, extend service life, and prevent avoidable downtime.

  • Install and align the coupling according to the specified installation requirements
  • Verify operating torque and speed remain within the coupling’s rated limits
  • Inspect flexible elements and connection components during scheduled maintenance
  • Monitor for abnormal vibration, noise or changes in operating conditions
  • Replace wear components when inspection indicates deterioration
