Gears & Drive Solutions

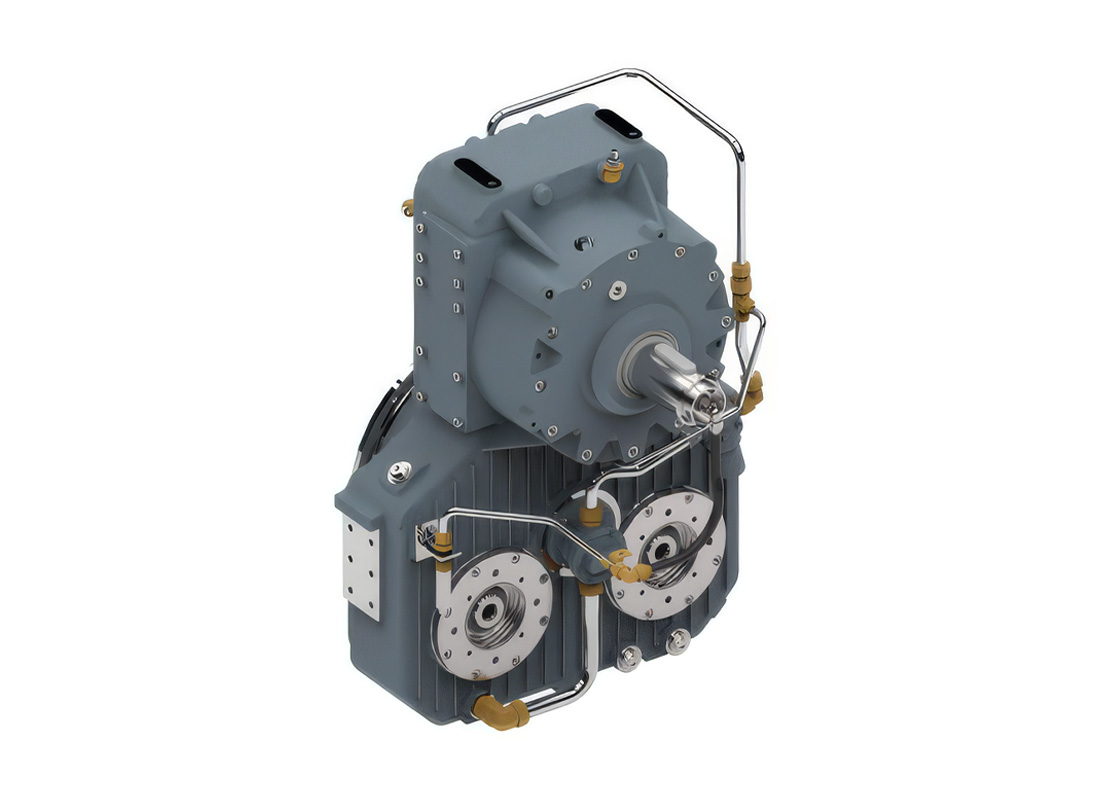

Revox® Hydraulic Start-Up Gearbox

Smooth hydraulic start-up, efficient direct drive, and reliable power transmission for high-inertia machines.

Download Brochure

Smooth Start-Up for High-Inertia Drive Systems

DESCH Revox® drive systems combine the energy efficiency of direct drive technology with the flexibility and control of hydraulic systems. Designed for demanding industrial applications, they provide smooth, reliable start-up of rotating masses while ensuring dependable performance and operational safety without relying on sensitive electronic controls.

With a robust power-split gearbox design, high power capability, and proven reliability, Revox® solutions help optimize efficiency, reduce system complexity, and support long-term operation in challenging environments. Backed by proven DESCH engineering, they are ideally suited for the following industries and applications:

Construction Machinery

Crusher Applications

Mobile Machinery

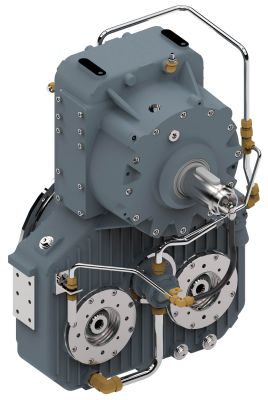

Revox®

The Revox® drive concept combines the energy efficiency of mechanical direct drive with the flexibility of hydraulic drive technology. A power-split gearbox forms the core of the system, with a hydraulic motor providing controlled acceleration during start-up.

Once the machine has reached operating speed, the system transitions to mechanical direct drive for efficient continuous operation. The concept provides smooth and controlled acceleration of high rotational masses while avoiding the need for sensitive electronic control systems.

  • Hydraulic soft start
  • Virtually wear-free clutch operation
  • Mechanical direct drive for efficient continuous operation
  • Reversibility with full braking torque
Max. Power400 kW
Max. Torque2,500 Nm
No-Load Speed800 rpm
Revox_400x400

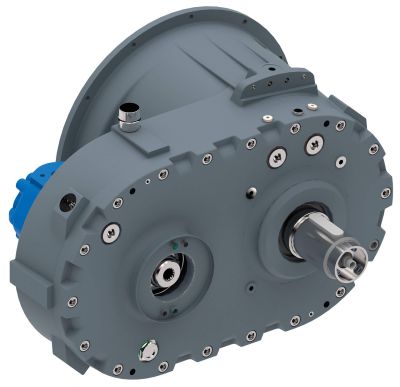

Revox®S

The Revox®S is a compact gearbox solution designed for the controlled start-up of high rotational masses, particularly in shredding applications.

During start-up, torque is transmitted through a robust wet-running clutch, allowing the machine to accelerate smoothly. Once operating speed is reached, the mechanical direct drive provides an energy-efficient solution for continuous operation.

  • Hydraulic soft start
  • Virtually wear-free clutch operation
  • Mechanical direct drive
Max. Power280 kW
Max. Torque1,800 Nm
Max. Speed2,100 rpm
Revox_S_400x400

Choosing The Right Gearbox For The Job

There’s a lot to consider when choosing the right DESCH product for your specific application.

Conditions

From environmental exposure to system constraints, the right solution must align with how your equipment runs.

Key factors to assess include:

  • Frequency of start-up cycles
  • Shock and load conditions
  • Available installation space

Application & Drive Requirements

Revox® is suited to applications where large rotating masses need to be brought smoothly up to operating speed before transitioning to efficient mechanical direct drive.

When evaluating, consider:

  • Required start-up power
  • Maximum operating torque
  • Required acceleration characteristics

Drive Configuration

The Revox® concept combines hydraulic and mechanical drive technologies within a single integrated drive system.

Our options include:

  • Switchable start motor
  • Power-split gearbox
  • Hydraulic pump integration

Maintain For Longevity

While DESCH products are engineered for long-term performance, appropriate maintenance helps protect reliability, extend service life, and prevent avoidable downtime

  • Select according to the machine’s power, torque, speed, and inertia requirements.
  • Install and commission according to the applicable DESCH documentation.
  • Regularly inspect hydraulic pressure, clutch operation, and gearbox performance.
  • Monitor lubrication levels and operating conditions to applicable maintenance requirements.
