DESCH grid couplings are designed for demanding industrial drive systems.
Grid Couplings For Demanding Industrial Applications
DESCH grid couplings are engineered to deliver dependable torque transmission while accommodating the dynamic conditions found in demanding industrial applications. The flexible grid element provides torsional flexibility, helping absorb shock loads and damp vibration between connected shafts. Designed around robust mechanical construction and serviceable components, grid couplings can provide a practical, durable connection for a wide range of industrial drive systems. Different configurations and sizes allow the coupling to be selected according to torque, speed, shaft diameter, misalignment and installation requirements.
General Industrial & Engineering
Material Handling & Processing
Manufacturing & Forming
Heavy Industry & Primary Processing

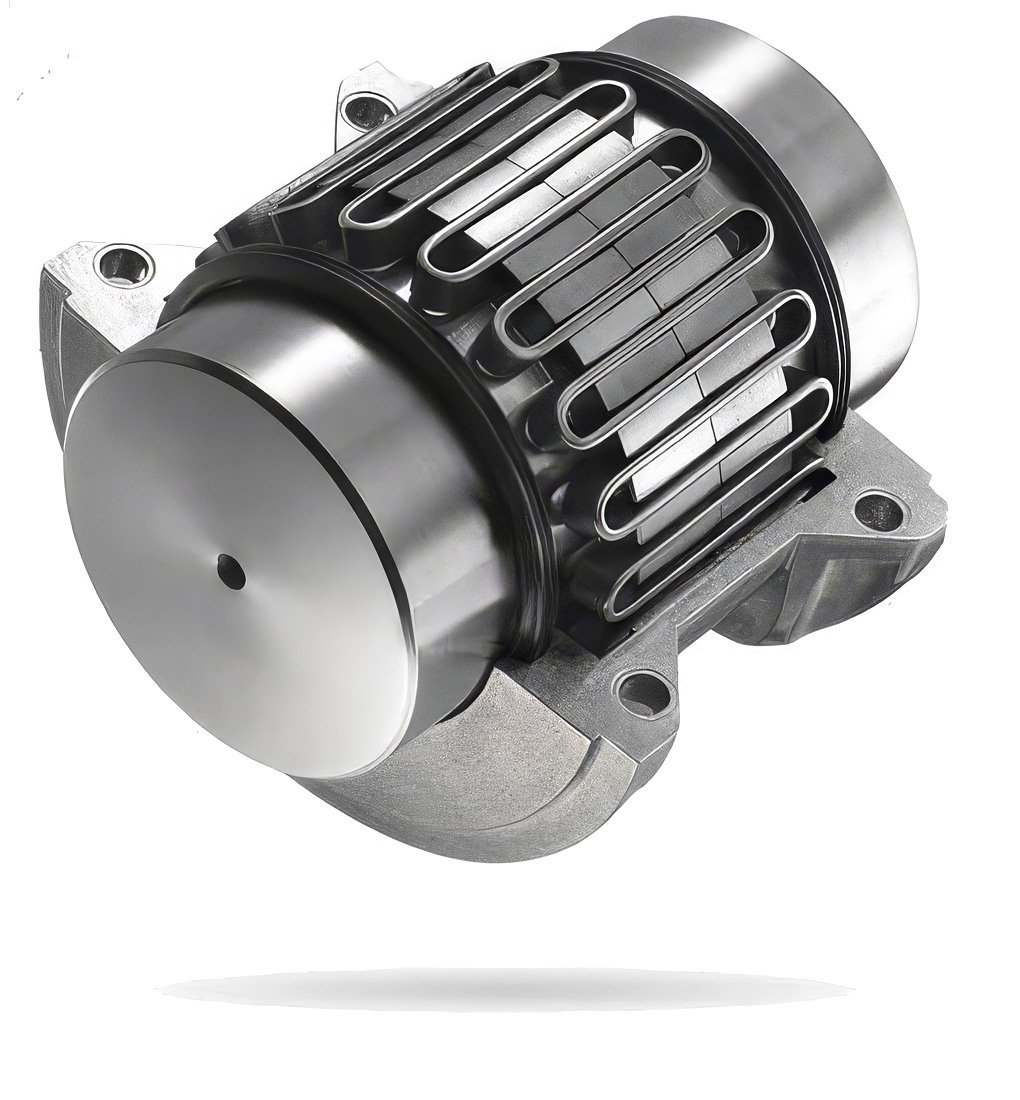

Standard Grid Coupling
The standard grid coupling is a flexible, double-flexing coupling solution designed to transmit torque while accommodating shaft misalignment and absorbing shock loads. The grid element works between toothed hubs to provide torsional flexibility and vibration dampening, making the design suitable for demanding industrial drive applications.
- Double-flexing design
- Flexible metallic grid element
- Accommodates shaft misalignment
| Key Benefit | Shock and vibration absorption |
Choosing The Coupling For The Job
There’s a lot to consider when choosing the right DESCH product for your specific application.
Conditions
Operating conditions determine how a coupling will perform throughout its service life.
Key factors to assess include:
- Shaft diameter and bore requirements
- Shaft misalignment
- Ambient and operating conditions
Use Case
When dependable torque transmission needs to be combined with flexibility, shock absorption and vibration dampening.
When evaluating use cases, consider:
- Shaft spacing
- Equipment configuration
- Peak and shock loading
Configuration
Grid couplings can be configured to suit different equipment arrangements and operating requirements.
Our options include:
- High-speed configurations
- Spacer configurations
- Heavy-duty configurations
Maintain For Longevity
While DESCH products are engineered for long-term performance, appropriate maintenance helps protect reliability, extend service life, and prevent avoidable downtime.
- Install and align according to the applicable instructions
- Inspect the grid element and coupling components regularly
- Monitor for abnormal vibration, noise or operating conditions
- Maintain the recommended lubrication schedule
- Replace worn or damaged components as required
